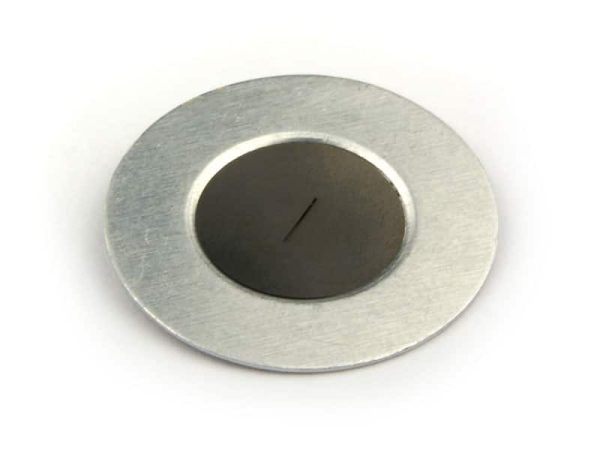

Blackened Slit

Blackened Air Slit

$61.00 – $124.46

Clear selection
SKU: BL-A-SLIT-3/8-DISC
All products are fully customizable including materials, please contact us with requests.
Category:

Description

These blackened precision air slits may be used for optical applications requiring high resolution and low backscatter (stray reflected photons) for the input or output surfaces of the disc.

Specifications
Diameter
9.5mm +0.025 / -0.050mm
(0.374in +0.000984 / -0.00197in)
Thickness
0.013mm
(0.000512in)
Slit Width
5 – 200µ
(0.000197 – 0.00787in)
Slit Length
3mm
(0.118in)
Centering
±0.1mm
(±0.00394in)
Finish
Blackened
Material
Stainless Steel (SS-302/304)
Slit Tolerances
Diameter
Tolerance +/-
5 µm
20%
10 – 50 µm
10%
100 µm+
5%



Additional information

Weight 1 oz
Mount

Unmounted, 16mm, 25mm
Slit Width

5 Micron, 6 Micron, 7 Micron, 8 Micron, 9 Micron, 10 Micron, 12 Micron, 15 Micron, 17 Micron, 20 Micron, 23 Micron, 25 Micron, 30 Micron, 35 Micron, 40 Micron, 45 Micron, 50 Micron, 75 Micron, 100 Micron, 150 Micron, 200 Micron, 250 Micron, 300 Micron, 350 Micron, 400 Micron, 450 Micron, 500 Micron, 550 Micron, 600 Micron, 650 Micron, 700 Micron, 750 Micron, 800 Micron, 850 Micron, 900 Micron, 950 Micron, 1000 Micron
The following prices are for online purchases only.
MountSlit WidthSKULead TimesPrice
Unmounted5 MicronBL-A-SLIT-3/8-DISC-55 to 7 business daysUSD 104.50
Unmounted6 MicronBL-A-SLIT-3/8-DISC-612 to 14 business daysUSD 104.50
Unmounted7 MicronBL-A-SLIT-3/8-DISC-712 to 14 business daysUSD 104.50
Unmounted8 MicronBL-A-SLIT-3/8-DISC-812 to 14 business daysUSD 104.50
Unmounted9 MicronBL-A-SLIT-3/8-DISC-912 to 14 business daysUSD 104.50
Unmounted10 MicronBL-A-SLIT-3/8-DISC-105 to 7 business daysUSD 104.50
Unmounted12 MicronBL-A-SLIT-3/8-DISC-1212 to 14 business daysUSD 104.50
Unmounted15 MicronBL-A-SLIT-3/8-DISC-155 to 7 business daysUSD 104.50
Unmounted17 MicronBL-A-SLIT-3/8-DISC-1712 to 14 business daysUSD 104.50
Unmounted20 MicronBL-A-SLIT-3/8-DISC-205 to 7 business daysUSD 104.50
Unmounted23 MicronBL-A-SLIT-3/8-DISC-2312 to 14 business daysUSD 104.50
Unmounted25 MicronBL-A-SLIT-3/8-DISC-255 to 7 business daysUSD 104.50
Unmounted30 MicronBL-A-SLIT-3/8-DISC-3012 to 14 business daysUSD 61.00
Unmounted35 MicronBL-A-SLIT-3/8-DISC-3512 to 14 business daysUSD 61.00
Unmounted40 MicronBL-A-SLIT-3/8-DISC-4012 to 14 business daysUSD 61.00
Unmounted45 MicronBL-A-SLIT-3/8-DISC-4512 to 14 business daysUSD 61.00
Unmounted50 MicronBL-A-SLIT-3/8-DISC-505 to 7 business daysUSD 61.00
Unmounted75 MicronBL-A-SLIT-3/8-DISC-755 to 7 business daysUSD 61.00
Unmounted100 MicronBL-A-SLIT-3/8-DISC-1005 to 7 business daysUSD 61.00
Unmounted150 MicronBL-A-SLIT-3/8-DISC-1505 to 7 business daysUSD 61.00
Unmounted200 MicronBL-A-SLIT-3/8-DISC-2005 to 7 business daysUSD 61.00
Unmounted250 MicronBL-A-SLIT-3/8-DISC-25012 to 14 business daysUSD 61.00
Unmounted300 MicronBL-A-SLIT-3/8-DISC-3005 to 7 business daysUSD 61.00
Unmounted350 MicronBL-A-SLIT-3/8-DISC-35012 to 14 business daysUSD 61.00
Unmounted400 MicronBL-A-SLIT-3/8-DISC-4005 to 7 business daysUSD 61.00
Unmounted450 MicronBL-A-SLIT-3/8-DISC-45012 to 14 business daysUSD 61.00
Unmounted500 MicronBL-A-SLIT-3/8-DISC-5005 to 7 business daysUSD 61.00
Unmounted550 MicronBL-A-SLIT-3/8-DISC-55012 to 14 business daysUSD 61.00
Unmounted600 MicronBL-A-SLIT-3/8-DISC-6005 to 7 business daysUSD 61.00
Unmounted650 MicronBL-A-SLIT-3/8-DISC-65012 to 14 business daysUSD 61.00
Unmounted700 MicronBL-A-SLIT-3/8-DISC-7005 to 7 business daysUSD 61.00
Unmounted750 MicronBL-A-SLIT-3/8-DISC-75012 to 14 business daysUSD 61.00
Unmounted800 MicronBL-A-SLIT-3/8-DISC-8005 to 7 business daysUSD 61.00
Unmounted850 MicronBL-A-SLIT-3/8-DISC-85012 to 14 business daysUSD 61.00
Unmounted900 MicronBL-A-SLIT-3/8-DISC-9005 to 7 business daysUSD 61.00
Unmounted950 MicronBL-A-SLIT-3/8-DISC-95012 to 14 business daysUSD 61.00
Unmounted1000 MicronBL-A-SLIT-3/8-DISC-10005 to 7 business daysUSD 61.00
16mm5 MicronBL-A-SLIT-3/8-DISC-5-MT-165 to 7 business daysUSD 124.46
16mm6 MicronBL-A-SLIT-3/8-DISC-6-MT-1612 to 14 business daysUSD 124.46
16mm7 MicronBL-A-SLIT-3/8-DISC-7-MT-1612 to 14 business daysUSD 124.46
16mm8 MicronBL-A-SLIT-3/8-DISC-8-MT-1612 to 14 business daysUSD 124.46
16mm9 MicronBL-A-SLIT-3/8-DISC-9-MT-1612 to 14 business daysUSD 124.46
16mm10 MicronBL-A-SLIT-3/8-DISC-10-MT-165 to 7 business daysUSD 124.46
16mm12 MicronBL-A-SLIT-3/8-DISC-12-MT-1612 to 14 business daysUSD 124.46
16mm15 MicronBL-A-SLIT-3/8-DISC-15-MT-165 to 7 business daysUSD 124.46
16mm17 MicronBL-A-SLIT-3/8-DISC-17-MT-1612 to 14 business daysUSD 124.46
16mm20 MicronBL-A-SLIT-3/8-DISC-20-MT-165 to 7 business daysUSD 124.46
16mm23 MicronBL-A-SLIT-3/8-DISC-23-MT-1612 to 14 business daysUSD 124.46
16mm25 MicronBL-A-SLIT-3/8-DISC-25-MT-165 to 7 business daysUSD 124.46
16mm30 MicronBL-A-SLIT-3/8-DISC-30-MT-1612 to 14 business daysUSD 80.96
16mm35 MicronBL-A-SLIT-3/8-DISC-35-MT-1612 to 14 business daysUSD 80.96
16mm40 MicronBL-A-SLIT-3/8-DISC-40-MT-1612 to 14 business daysUSD 80.96
16mm45 MicronBL-A-SLIT-3/8-DISC-45-MT-1612 to 14 business daysUSD 80.96
16mm50 MicronBL-A-SLIT-3/8-DISC-50-MT-165 to 7 business daysUSD 80.96
16mm75 MicronBL-A-SLIT-3/8-DISC-75-MT-165 to 7 business daysUSD 80.96
16mm100 MicronBL-A-SLIT-3/8-DISC-100-MT-165 to 7 business daysUSD 80.96
16mm150 MicronBL-A-SLIT-3/8-DISC-150-MT-165 to 7 business daysUSD 80.96
16mm200 MicronBL-A-SLIT-3/8-DISC-200-MT-165 to 7 business daysUSD 80.96
16mm250 MicronBL-A-SLIT-3/8-DISC-250-MT-1612 to 14 business daysUSD 80.96
16mm300 MicronBL-A-SLIT-3/8-DISC-300-MT-165 to 7 business daysUSD 80.96
16mm350 MicronBL-A-SLIT-3/8-DISC-350-MT-1612 to 14 business daysUSD 80.96
16mm400 MicronBL-A-SLIT-3/8-DISC-400-MT-165 to 7 business daysUSD 80.96
16mm450 MicronBL-A-SLIT-3/8-DISC-450-MT-1612 to 14 business daysUSD 80.96
16mm500 MicronBL-A-SLIT-3/8-DISC-500-MT-165 to 7 business daysUSD 80.96
16mm550 MicronBL-A-SLIT-3/8-DISC-550-MT-1612 to 14 business daysUSD 80.96
16mm600 MicronBL-A-SLIT-3/8-DISC-600-MT-165 to 7 business daysUSD 80.96
16mm650 MicronBL-A-SLIT-3/8-DISC-650-MT-1612 to 14 business daysUSD 80.96
16mm700 MicronBL-A-SLIT-3/8-DISC-700-MT-165 to 7 business daysUSD 80.96
16mm750 MicronBL-A-SLIT-3/8-DISC-750-MT-165 to 7 business daysUSD 80.96
16mm800 MicronBL-A-SLIT-3/8-DISC-800-MT-165 to 7 business daysUSD 80.96
16mm850 MicronBL-A-SLIT-3/8-DISC-850-MT-1612 to 14 business daysUSD 80.96
16mm900 MicronBL-A-SLIT-3/8-DISC-900-MT-165 to 7 business daysUSD 80.96
16mm950 MicronBL-A-SLIT-3/8-DISC-950-MT-1612 to 14 business daysUSD 80.96
16mm1000 MicronBL-A-SLIT-3/8-DISC-1000-MT-165 to 7 business daysUSD 80.96
25mm5 MicronBL-A-SLIT-3/8-DISC-5-MT-255 to 7 business daysUSD 124.46
25mm6 MicronBL-A-SLIT-3/8-DISC-6-MT-2512 to 14 business daysUSD 124.46
25mm7 MicronBL-A-SLIT-3/8-DISC-7-MT-2512 to 14 business daysUSD 124.46
25mm8 MicronBL-A-SLIT-3/8-DISC-8-MT-2512 to 14 business daysUSD 124.46
25mm9 MicronBL-A-SLIT-3/8-DISC-9-MT-2512 to 14 business daysUSD 124.46
25mm10 MicronBL-A-SLIT-3/8-DISC-10-MT-255 to 7 business daysUSD 124.46
25mm12 MicronBL-A-SLIT-3/8-DISC-12-MT-2512 to 14 business daysUSD 124.46
25mm15 MicronBL-A-SLIT-3/8-DISC-15-MT-255 to 7 business daysUSD 124.46
25mm17 MicronBL-A-SLIT-3/8-DISC-17-MT-2512 to 14 business daysUSD 124.46
25mm20 MicronBL-A-SLIT-3/8-DISC-20-MT-255 to 7 business daysUSD 124.46
25mm23 MicronBL-A-SLIT-3/8-DISC-23-MT-2512 to 14 business daysUSD 124.46
25mm25 MicronBL-A-SLIT-3/8-DISC-25-MT-255 to 7 business daysUSD 124.46
25mm30 MicronBL-A-SLIT-3/8-DISC-30-MT-2512 to 14 business daysUSD 80.96
25mm35 MicronBL-A-SLIT-3/8-DISC-35-MT-2512 to 14 business daysUSD 80.96
25mm40 MicronBL-A-SLIT-3/8-DISC-40-MT-2512 to 14 business daysUSD 80.96
25mm45 MicronBL-A-SLIT-3/8-DISC-45-MT-2512 to 14 business daysUSD 80.96
25mm50 MicronBL-A-SLIT-3/8-DISC-50-MT-255 to 7 business daysUSD 80.96
25mm75 MicronBL-A-SLIT-3/8-DISC-75-MT-255 to 7 business daysUSD 80.96
25mm100 MicronBL-A-SLIT-3/8-DISC-100-MT-255 to 7 business daysUSD 80.96
25mm150 MicronBL-A-SLIT-3/8-DISC-150-MT-255 to 7 business daysUSD 80.96
25mm200 MicronBL-A-SLIT-3/8-DISC-200-MT-255 to 7 business daysUSD 80.96
25mm250 MicronBL-A-SLIT-3/8-DISC-250-MT-2512 to 14 business daysUSD 80.96
25mm300 MicronBL-A-SLIT-3/8-DISC-300-MT-255 to 7 business daysUSD 80.96
25mm350 MicronBL-A-SLIT-3/8-DISC-350-MT-2512 to 14 business daysUSD 80.96
25mm400 MicronBL-A-SLIT-3/8-DISC-400-MT-255 to 7 business daysUSD 80.96
25mm450 MicronBL-A-SLIT-3/8-DISC-450-MT-2512 to 14 business daysUSD 80.96
25mm500 MicronBL-A-SLIT-3/8-DISC-500-MT-255 to 7 business daysUSD 80.96
25mm550 MicronBL-A-SLIT-3/8-DISC-550-MT-2512 to 14 business daysUSD 80.96
25mm600 MicronBL-A-SLIT-3/8-DISC-600-MT-255 to 7 business daysUSD 80.96
25mm650 MicronBL-A-SLIT-3/8-DISC-650-MT-2512 to 14 business daysUSD 80.96
25mm700 MicronBL-A-SLIT-3/8-DISC-700-MT-255 to 7 business daysUSD 80.96
25mm750 MicronBL-A-SLIT-3/8-DISC-750-MT-2512 to 14 business daysUSD 80.96
25mm800 MicronBL-A-SLIT-3/8-DISC-800-MT-255 to 7 business daysUSD 80.96
25mm850 MicronBL-A-SLIT-3/8-DISC-850-MT-2512 to 14 business daysUSD 80.96
25mm900 MicronBL-A-SLIT-3/8-DISC-900-MT-255 to 7 business daysUSD 80.96
25mm950 MicronBL-A-SLIT-3/8-DISC-950-MT-2512 to 14 business daysUSD 80.96
25mm1000 MicronBL-A-SLIT-3/8-DISC-1000-MT-255 to 7 business daysUSD 80.96
MountSlit WidthSKULead TimesPrice
