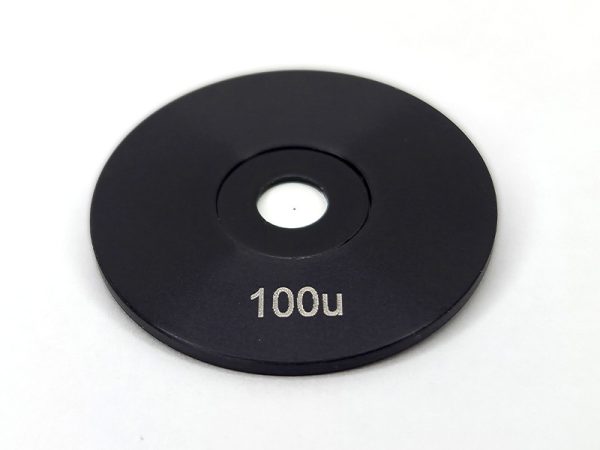

Infrared Aperture
SKU: IR-SS-3/8-DISC Category:

Infrared Aperture

Description

Lenox Laser’s Infrared Apertures can be used for a variety of precision IR applications, including:

  • Spatial Filters
  • IR Lasers
  • Spectral Equip.
  • IR Optics

These apertures are designed for shaping beams of high power lasers. A practical example is the aperture within a spatial filter assembly.

More Flat White IR Coating Services are also available – Contact Us for Details

Specifications
Diameter
9.5mm +0.025 / -0.050mm
(0.374in +0.000984 / -0.00197in)
Thickness
0.013 – 0.050mm
(0.000512 – 0.00197in)
Centering
±0.125mm
(±0.00492in)
Material
SS 304
Coating
Flat White



Aperture Tolerances
Diameter
Tolerance +/-
20 – 100 µm
10%
150 µm +
5%



Additional information

Weight 1 oz
Mount

0.5", 1", 16mm, 25mm
Hole Diameter

10 Micron, 12 Micron, 15 Micron, 17 Micron, 20 Micron, 23 Micron, 25 Micron, 30 Micron, 35 Micron, 40 Micron, 45 Micron, 50 Micron, 75 Micron, 100 Micron, 150 Micron, 200 Micron, 250 Micron, 300 Micron, 350 Micron, 400 Micron, 450 Micron, 500 Micron, 550 Micron, 600 Micron, 650 Micron, 700 Micron, 750 Micron, 800 Micron, 850 Micron, 900 Micron, 950 Micron, 1000 Micron
SKUMountHole DiameterPriceBuy
IR-SS-3/8-DISC-10-MT-1"1"10 Micron$96.96
IR-SS-3/8-DISC-12-MT-1"1"12 Micron$96.96
IR-SS-3/8-DISC-15-MT-1"1"15 Micron$96.96
IR-SS-3/8-DISC-17-MT-1"1"17 Micron$96.96
IR-SS-3/8-DISC-20-MT-1"1"20 Micron$96.96
IR-SS-3/8-DISC-23-MT-1"1"23 Micron$96.96
IR-SS-3/8-DISC-25-MT-1"1"25 Micron$96.96
IR-SS-3/8-DISC-30-MT-1"1"30 Micron$82.41
IR-SS-3/8-DISC-35-MT-1"1"35 Micron$82.41
IR-SS-3/8-DISC-40-MT-1"1"40 Micron$82.41
IR-SS-3/8-DISC-45-MT-1"1"45 Micron$82.41
IR-SS-3/8-DISC-50-MT-1"1"50 Micron$82.41
IR-SS-3/8-DISC-75-MT-1"1"75 Micron$71.96
IR-SS-3/8-DISC-100-MT-1"1"100 Micron$71.96
IR-SS-3/8-DISC-150-MT-1"1"150 Micron$71.96
IR-SS-3/8-DISC-200-MT-1"1"200 Micron$71.96
IR-SS-3/8-DISC-250-MT-1"1"250 Micron$71.96
IR-SS-3/8-DISC-300-MT-1"1"300 Micron$71.96
IR-SS-3/8-DISC-350-MT-1"1"350 Micron$71.96
IR-SS-3/8-DISC-400-MT-1"1"400 Micron$71.96
IR-SS-3/8-DISC-450-MT-1"1"450 Micron$71.96
IR-SS-3/8-DISC-500-MT-1"1"500 Micron$71.96
IR-SS-3/8-DISC-550-MT-1"1"550 Micron$71.96
IR-SS-3/8-DISC-600-MT-1"1"600 Micron$71.96
IR-SS-3/8-DISC-650-MT-1"1"650 Micron$71.96
IR-SS-3/8-DISC-700-MT-1"1"700 Micron$71.96
IR-SS-3/8-DISC-750-MT-1"1"750 Micron$71.96
IR-SS-3/8-DISC-800-MT-1"1"800 Micron$71.96
IR-SS-3/8-DISC-850-MT-1"1"850 Micron$71.96
IR-SS-3/8-DISC-900-MT-1"1"900 Micron$71.96
IR-SS-3/8-DISC-950-MT-1"1"950 Micron$71.96
IR-SS-3/8-DISC-1000-MT-1"1"1000 Micron$71.96
IR-SS-3/8-DISC-10-MT-0.5"0.5"10 Micron$96.96
IR-SS-3/8-DISC-12-MT-0.5"0.5"12 Micron$96.96
IR-SS-3/8-DISC-15-MT-0.5"0.5"15 Micron$96.96
IR-SS-3/8-DISC-17-MT-0.5"0.5"17 Micron$96.96
IR-SS-3/8-DISC-20-MT-0.5"0.5"20 Micron$96.96
IR-SS-3/8-DISC-23-MT-0.5"0.5"23 Micron$96.96
IR-SS-3/8-DISC-25-MT-0.5"0.5"25 Micron$96.96
IR-SS-3/8-DISC-30-MT-0.5"0.5"30 Micron$82.41
IR-SS-3/8-DISC-35-MT-0.5"0.5"35 Micron$82.41
IR-SS-3/8-DISC-40-MT-0.5"0.5"40 Micron$82.41
IR-SS-3/8-DISC-45-MT-0.5"0.5"45 Micron$82.41
IR-SS-3/8-DISC-50-MT-0.5"0.5"50 Micron$82.41
IR-SS-3/8-DISC-75-MT-0.5"0.5"75 Micron$71.96
IR-SS-3/8-DISC-100-MT-0.5"0.5"100 Micron$71.96
IR-SS-3/8-DISC-150-MT-0.5"0.5"150 Micron$71.96
IR-SS-3/8-DISC-200-MT-0.5"0.5"200 Micron$71.96
IR-SS-3/8-DISC-250-MT-0.5"0.5"250 Micron$71.96
IR-SS-3/8-DISC-300-MT-0.5"0.5"300 Micron$71.96
IR-SS-3/8-DISC-350-MT-0.5"0.5"350 Micron$71.96
IR-SS-3/8-DISC-400-MT-0.5"0.5"400 Micron$71.96
IR-SS-3/8-DISC-450-MT-0.5"0.5"450 Micron$71.96
IR-SS-3/8-DISC-500-MT-0.5"0.5"500 Micron$71.96
IR-SS-3/8-DISC-550-MT-0.5"0.5"550 Micron$71.96
IR-SS-3/8-DISC-600-MT-0.5"0.5"600 Micron$71.96
IR-SS-3/8-DISC-650-MT-0.5"0.5"650 Micron$71.96
IR-SS-3/8-DISC-700-MT-0.5"0.5"700 Micron$71.96
IR-SS-3/8-DISC-750-MT-0.5"0.5"750 Micron$71.96
IR-SS-3/8-DISC-800-MT-0.5"0.5"800 Micron$71.96
IR-SS-3/8-DISC-850-MT-0.5"0.5"850 Micron$71.96
IR-SS-3/8-DISC-900-MT-0.5"0.5"900 Micron$71.96
IR-SS-3/8-DISC-950-MT-0.5"0.5"950 Micron$71.96
IR-SS-3/8-DISC-1000-MT-0.5"0.5"1000 Micron$71.96
IR-SS-3/8-DISC-10-MT-1616mm10 Micron$96.96
IR-SS-3/8-DISC-12-MT-1616mm12 Micron$96.96
IR-SS-3/8-DISC-15-MT-1616mm15 Micron$96.96
IR-SS-3/8-DISC-17-MT-1616mm17 Micron$96.96
IR-SS-3/8-DISC-20-MT-1616mm20 Micron$96.96
IR-SS-3/8-DISC-23-MT-1616mm23 Micron$96.96
IR-SS-3/8-DISC-25-MT-1616mm25 Micron$96.96
IR-SS-3/8-DISC-30-MT-1616mm30 Micron$82.41
IR-SS-3/8-DISC-35-MT-1616mm35 Micron$82.41
IR-SS-3/8-DISC-40-MT-1616mm40 Micron$82.41
IR-SS-3/8-DISC-45-MT-1616mm45 Micron$82.41
IR-SS-3/8-DISC-50-MT-1616mm50 Micron$82.41
IR-SS-3/8-DISC-75-MT-1616mm75 Micron$71.96
IR-SS-3/8-DISC-100-MT-1616mm100 Micron$71.96
IR-SS-3/8-DISC-150-MT-1616mm150 Micron$71.96
IR-SS-3/8-DISC-200-MT-1616mm200 Micron$71.96
IR-SS-3/8-DISC-250-MT-1616mm250 Micron$71.96
IR-SS-3/8-DISC-300-MT-1616mm300 Micron$71.96
IR-SS-3/8-DISC-350-MT-1616mm350 Micron$71.96
IR-SS-3/8-DISC-400-MT-1616mm400 Micron$71.96
IR-SS-3/8-DISC-450-MT-1616mm450 Micron$71.96
IR-SS-3/8-DISC-500-MT-1616mm500 Micron$71.96
IR-SS-3/8-DISC-550-MT-1616mm550 Micron$71.96
IR-SS-3/8-DISC-600-MT-1616mm600 Micron$71.96
IR-SS-3/8-DISC-650-MT-1616mm650 Micron$71.96
IR-SS-3/8-DISC-700-MT-1616mm700 Micron$71.96
IR-SS-3/8-DISC-750-MT-1616mm750 Micron$71.96
IR-SS-3/8-DISC-800-MT-1616mm800 Micron$71.96
IR-SS-3/8-DISC-850-MT-1616mm850 Micron$71.96
IR-SS-3/8-DISC-900-MT-1616mm900 Micron$71.96
IR-SS-3/8-DISC-950-MT-1616mm950 Micron$71.96
IR-SS-3/8-DISC-1000-MT-1616mm1000 Micron$71.96
IR-SS-3/8-DISC-10-MT-2525mm10 Micron$96.96
IR-SS-3/8-DISC-12-MT-2525mm12 Micron$96.96
IR-SS-3/8-DISC-15-MT-2525mm15 Micron$96.96
IR-SS-3/8-DISC-17-MT-2525mm17 Micron$96.96
IR-SS-3/8-DISC-20-MT-2525mm20 Micron$96.96
IR-SS-3/8-DISC-23-MT-2525mm23 Micron$96.96
IR-SS-3/8-DISC-25-MT-2525mm25 Micron$96.96
IR-SS-3/8-DISC-30-MT-2525mm30 Micron$82.41
IR-SS-3/8-DISC-35-MT-2525mm35 Micron$82.41
IR-SS-3/8-DISC-40-MT-2525mm40 Micron$82.41
IR-SS-3/8-DISC-45-MT-2525mm45 Micron$82.41
IR-SS-3/8-DISC-50-MT-2525mm50 Micron$82.41
IR-SS-3/8-DISC-75-MT-2525mm75 Micron$71.96
IR-SS-3/8-DISC-100-MT-2525mm100 Micron$71.96
IR-SS-3/8-DISC-150-MT-2525mm150 Micron$71.96
IR-SS-3/8-DISC-200-MT-2525mm200 Micron$71.96
IR-SS-3/8-DISC-250-MT-2525mm250 Micron$71.96
IR-SS-3/8-DISC-300-MT-2525mm300 Micron$71.96
IR-SS-3/8-DISC-350-MT-2525mm350 Micron$71.96
IR-SS-3/8-DISC-400-MT-2525mm400 Micron$71.96
IR-SS-3/8-DISC-450-MT-2525mm450 Micron$71.96
IR-SS-3/8-DISC-500-MT-2525mm500 Micron$71.96
IR-SS-3/8-DISC-550-MT-2525mm550 Micron$71.96
IR-SS-3/8-DISC-600-MT-2525mm600 Micron$71.96
IR-SS-3/8-DISC-650-MT-2525mm650 Micron$71.96
IR-SS-3/8-DISC-700-MT-2525mm700 Micron$71.96
IR-SS-3/8-DISC-750-MT-2525mm750 Micron$71.96
IR-SS-3/8-DISC-800-MT-2525mm800 Micron$71.96
IR-SS-3/8-DISC-850-MT-2525mm850 Micron$71.96
IR-SS-3/8-DISC-900-MT-2525mm900 Micron$71.96
IR-SS-3/8-DISC-950-MT-2525mm950 Micron$71.96
IR-SS-3/8-DISC-1000-MT-2525mm1000 Micron$71.96
