We sell high quality Lenox Orifices ™ for flow restriction applications.

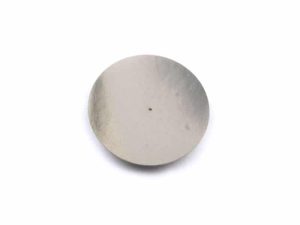

FSS-3/8-DISC
3/8" Orifice Disc
SS Orifice (3/8″ Disc)

Specifications Diameter 9.5 mm +0.025 / -0.050 mm (0.374″ +0.000984″/-0.00197″) Thickness 0.050mm (0.00197″) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-304)

Read more

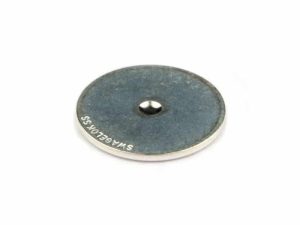

NI-2-VCR-2
1/4th inch gasket
1/8″ Nickel VCR® Gasket, Silver-Plated, Nonretained

Specifications Diameter 6.6 mm (0.26 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
NI-2-VCR-2-VS
1/4th inch gasket
1/8″ Nickel VCR® Gasket, Unplated, Nonretained

Specifications Diameter 6.6 mm (0.26 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
SS-2-VCR-2
1/4th inch gasket
1/8″ Stainless Steel VCR® Gasket, Silver-Plated, Nonretained

Specifications Diameter 6.6 mm (0.26 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
SS-2-VCR-2-VS
1/4th inch gasket
1/8″ Stainless Steel VCR® Gasket, Unplated, Nonretained

Specifications Diameter 6.6 mm (0.26 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
NI-4-VCR-2
1/2 inch gasket
1/4″ Nickel VCR® Gasket, Silver-Plated, Nonretained

Specifications Diameter 11.9 mm (0.47 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
NI-4-VCR-2-GR
1/2 inch gasket in retaining clip
1/4″ Nickel VCR® Gasket, Silver-Plated with Gasket Retainer

Specifications Diameter 11.9 mm (0.47 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
NI-4-VCR-2-GR-VS
1/2 inch gasket in retaining clip
1/4″ Nickel VCR® Gasket, Unplated with Gasket Retainer

Specifications Diameter 11.9 mm (0.47 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
NI-4-VCR-2-VS
1/2 inch gasket
1/4″ Nickel VCR® Gasket, Unplated, Nonretained

Specifications Diameter 11.9 mm (0.47 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
SS-4-VCR-2
1/2 inch gasket
1/4″ Stainless Steel VCR® Gasket, Silver-Plated, Nonretained

Specifications Diameter 11.9 mm (0.47 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
SS-4-VCR-2-GR
1/2 inch gasket in retaining clip
1/4″ Stainless Steel VCR® Gasket, Silver-Plated with Gasket Retainer

Specifications Diameter 11.9 mm (0.47 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
NI-8-VCR-2
3/4th inch gasket
1/2″ Nickel VCR® Gasket, Silver-Plated, Nonretained

Specifications Diameter 19.8 mm (0.78 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
SS-4-VCR-2-GR-VS
1/2 inch gasket in retaining clip
1/4″ Stainless Steel VCR® Gasket, Unplated with Gasket Retainer

Specifications Diameter 11.9 mm (0.47 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
NI-8-VCR-2-GR-VS
3/4th inch gasket in retaining clip
1/2″ Nickel VCR® Gasket, Unplated with Gasket Retainer

Specifications Diameter 19.8 mm (0.78 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
SS-4-VCR-2-VS
1/2 inch gasket
1/4″ Stainless Steel VCR® Gasket, Non-Plated, Nonretained

Specifications Diameter 11.9 mm (0.47 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
NI-8-VCR-2-VS
3/4th inch gasket
1/2″ Nickel VCR® Gasket, Unplated, Nonretained

Specifications Diameter 19.8 mm (0.78 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
NI-8-VCR-2-GR
3/4th inch gasket in retaining clip
1/2″ Nickel VCR® Gasket, Silver-Plated with Gasket Retainer

Specifications Diameter 19.8 mm (0.78 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Nickel

Read more
SS-8-VCR-2
3/4th inch gasket
1/2″ Stainless Steel VCR® Gasket, Silver-Plated, Nonretained

Specifications Diameter 19.8 mm (0.78 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
SS-8-VCR-2-GR-VS
3/4th inch gasket in retaining clip
1/2″ Stainless Steel VCR® Gasket, Unplated with Gasket Retainer

Specifications Diameter 19.8 mm (0.78 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
SS-8-VCR-2-VS
3/4th inch gasket
1/2″ Stainless Steel VCR® Gasket, Unplated, Nonretained

Specifications Diameter 19.8 mm (0.78 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more
SS-8-VCR-2-GR
3/4th inch gasket in retaining clip
1/2″ Stainless Steel VCR® Gasket, Silver-Plated with Gasket Retainer

Specifications Diameter 19.8 mm (0.78 ± .02in) Thickness 0.7 mm (0.028 in) Orifice Diameter 1 – 1000µm (0.0000394″ – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316L)

Read more

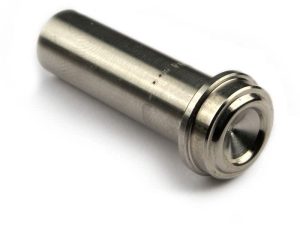

SS-4-VCR-3
VCR Gland
VCR® Gland

Specifications Orifice Diameter 1 – 1000µm (0.0000394 – 0.0394in) Centering ±0.250mm (±0.00984″) Material Stainless Steel (SS-316)

Read more
CU-CF
Copper Conflat
Copper Conflat

Specifications Diameter 48.6mm (1.91″) Thickness 2.2mm (0.0866″) Centering ±0.250mm (±0.00984″) Orifice Diameter 1 – 1000µ (0.0000394″ – 0.0394″) Material Copper

Read more
SS-CF-1
Stainless Steel 1 Sided Conflat
SS 1 Sided Conflat

Specifications Diameter 34mm (1.339″) Thickness 7.7mm (0.303″) Centering ±0.250mm (±0.00984″) Orifice Diameter 3 – 1000µ (0.000118″ – 0.0394″) Material Stainless Steel (SS-303)

Read more
SS-CF-2
Stainless Steel 1 Sided Conflat
SS 2 Sided Conflat

Specifications Diameter 34mm (1.339″) Thickness 7.7mm (0.303″) Centering ±0.250mm (±0.00984″) Orifice Diameter 3 – 1000µ (0.000118″ – 0.0394″) Material Stainless Steel (SS-303)

Read more
SS-1/4-BARB
Stainless Steel 1/4" Barb
SS 1/4″ Barb

Specifications Diameter 6.35mm x 6.35mm (1/4″ x 1/4″) Centering ±0.250mm (±0.00984″) Orifice Diameters 2 – 1000µ (0.0000787″ – 0.0394″) Material Stainless Steel (SS-303)

Read more
SS-3/16-BARB
Stainless Steel 3/16" Barb
SS 3/16″ Barb

Specifications Diameter 4.7625mm x 4.7625mm (3/16″ x 3/16″) Centering ±0.250mm (±0.00984″) Orifice Diameters 2 – 1000µ (0.0000787″ – 0.0394″) Material Stainless Steel (SS-303)

Read more
SS-1/8-NPT-1/8-BARB
Stainless Steel 1/8" X 1/8" Barb
SS 1/8″ NPT x 1/8″ Barb

Specifications Diameter 3.175mm x 3.175mm (1/8″ x 1/8″) Centering ±0.250mm (±0.00984″) Orifice Diameters 1 – 1000µ (0.0000394″ – 0.0394″) Material Stainless Steel (SS-300)

Read more
SS-1/8-NPT-3/16-BARB
Stainless Steel 1/8" X 3/16" Barb
SS 1/8″ NPT x 3/16″ Barb

Specifications Diameter 3.175mm x 4.7625mm (1/8″ x 3/16″) Centering ±0.250mm (±0.00984″) Orifice Diameters 1 – 1000µ (0.0000394″ – 0.0394″) Material Stainless Steel (SS-300)

Read more
SS-1/4-NPT-1/4-BARB
Stainless Steel 1/4" X 1/4" Barb
SS 1/4″ NPT x 1/4″ Barb

Specifications Diameter 6.35mm x 6.35mm (1/4″NPT x1/4″) Centering ±0.250mm (±0.00984″) Orifice Diameters 1 – 1000µ (0.0000394″ – 0.0394″) Material Stainless Steel (SS-300)

Read more
BR-1/8-NPT-1/4-BARB
Brass 1/8" X 1/4" Barb
Brass 1/8″ NPT x 1/4″ Barb

Specifications Diameter 3.175mm x 6.35mm (1/8″NPT x1/4″) Centering ±0.250mm (±0.00984″) Orifice Diameters 1 – 1000µ (0.0000394″ – 0.0394″) Material Brass (BR-360)

Read more

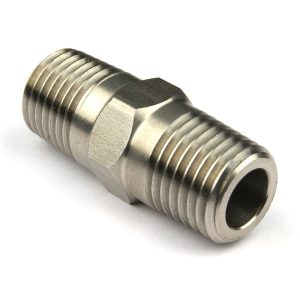

SS-1/4x1/4-NPT
Stainless Steel 1/4" Nipple
SS 1/4″ Nipple

Specifications Diameter 6.35mm x 6.35mm (1/4″NPT x 1/4″) Centering ±0.250mm (±0.00984″) Orifice Diameters 1 – 1000µ (0.0000394″ – 0.0394″) Material Stainless Steel (SS-303)

Read more
SS-1/8x1/8-NPT
1/8th inch npt coupling
SS 1/8″ Nipple

Specifications Diameter 3.175mm MNPT x 3.175mm NPT (1/8″ MNPT x 1/8″ NPT) Centering ±0.250mm (±0.00984″) Orifice Diameters 1 – 1000µ (0.0000394″ – 0.0394″) Material Stainless Steel (SS-303)

Read more

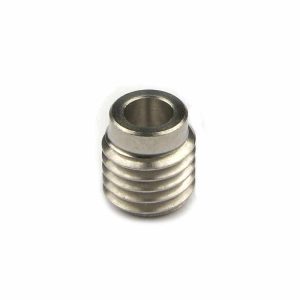

SS-1/4-28-SET-SCREW
Stainless Steel 1/4-28 Set Screw
SS Set Screw

Specifications Diameter 1/4″- 28 Centering ±0.250mm (±0.00984″) Orifice Diameters 1 – 1000µ (0.0000394″ – 0.0394″) Material Stainless Steel (SS-303)

Read more
SS-5/16-24-HEX-SCREW
Stainless Steel 5/16-24 Hex Screw
SS Hex Screw

Specifications Diameter 5/16″ – 24 Hex Centering ±0.250mm (±0.00984″) Orifice Diameters 1 – 1000µ (0.0000394″ – 0.0394″) Material Stainless Steel (SS-303)

Read more
SS-1/16-TUBE-CAL
Stainless Steel 1/16" Tubing
Calibrated SS 1/16″ Tubing

Specifications Diameter 1.651mm 0.065″ (~1/16″) Thickness 0.381mm (0.015″) Centering ±0.250mm (±0.00984″) Length Up to 50.8mm (2″)

Read more
SS-1/8-TUBE
Stainless Steel 1/8" Tubing
SS 1/8″ Tubing

Specifications Diameter 3.175mm (1/8″) Thickness 254µm (0.010″) Centering ±0.250mm (±0.00984″) Length Up to 76.2mm (3″)

Read more
SSP-1/8-TUBE
Stainless Steel 1/8" Tubing
SS 1/8″ High Pressure Tubing

Specifications Diameter 3.175mm (1/8″) Thickness 0.7112mm(0.028″) Centering ±0.250mm (±0.00984″) Length Up to 76.2mm (3″)

Read more
SS-1/4-TUBE
Stainless Steel 1/4" Tubing
SS 1/4″ Tubing

Specifications Diameter 6.35mm (1/4″) Thickness 0.508mm(0.020″) Centering ±0.250mm (±0.00984″) Length Up to 50.8 (2″)

Read more
SSP-1/4-TUBE
Stainless Steel 1/4" Tubing
SS 1/4″ High Pressure Tubing

Specifications Diameter 6.35mm (1/4″) Thickness 0.889mm(0.035″) Centering ±0.250mm (±0.00984″) Length Up to 76.2mm (3″)

Read more
MON-1/4-TUBE
High Temperature 1/4" Tubing
1/4″ High Temp. Tubing

Specifications Diameter 6.35mm (1/4″) Centering ± 0.125mm (±0.00492″) Tube Wall Thickness 1.0795mm(0.0425″) Length Up to 38.1mm (1.5″)

Read more
SS-3/8-TUBE
Stainless Steel 3/8" Tubing
SS 3/8″ Tubing

Specifications Diameter 9.525mm(3/8″) Thickness 0.508mm (0.020″) Centering ±0.125mm (±0.00492″) Circularity > 2µ (< 0.000059in) Length Up to 38.1mm (1.5″)

Read more
SS-1/2-TUBE
Stainless Steel 1/2" Tubing
SS 1/2″ Tubing

Specifications Diameter 12.7mm(1/2″) Thickness 0.508mm (0.020″n) Centering ±0.125mm (±0.00492in) Circularity > 2µ (< 0.000059in) Length Up to 50.8mm (2″)
